Name: UltraTech UT-PSU12/24V4/2A-1 Switchable PSU 4/2 Amp Output, 12/24 VDC
Brand: UltraTech by ADI
SKU: UT-PSU12-24V4-2A-1

UltraTech UT-PSU12/24V4/2A-1 Omskiftelig PSU 4/2 Amp Output, 12/24 VDC

Brand: UltraTech by ADI

ADI #:UT-PSU12-24V4-2A-1 Model #: UT-PSU12/24V4/2A-1 Name: UltraTech UT-PSU12/24V4/2A-1 Switchable PSU 4/2 Amp Output, 12/24 VDC

Mains Input: 100~240Vac - 50~60Hz
Output on 12v mode: 13.2~14.0vdc (13.8vdc nominal) 4A max
Output on 24v mode: 27.0~28.0vdc (27.6vdc nominal) 2A max

Produktoversigt

General Information

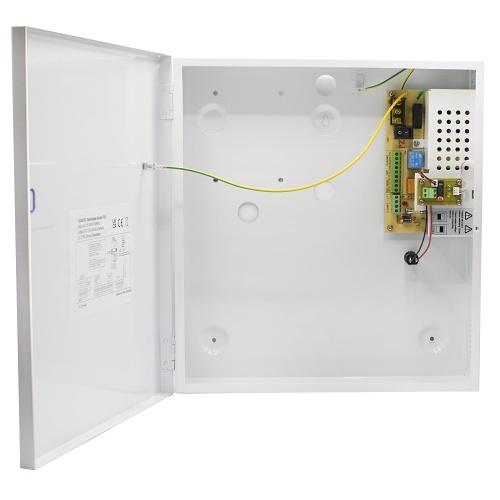

12/24V DC Power Supply Unit
Reliable and versatile power supply unit with selectable 12V or 24V DC output, delivering up to 4A or 2A respectively. Ideal for security and industrial systems, it features universal mains input, battery backup support, tamper protection, and built-in safety features including overload and overcharge protection. Panel indicators provide quick status updates, and additional relay outputs ensure flexible integration.

Vigtigste funktioner

Mains Input: 100~240Vac - 50~60Hz
Output on 12v mode: 13.2~14.0vdc (13.8vdc nominal) 4A max
Output on 24v mode: 27.0~28.0vdc (27.6vdc nominal) 2A max
Battery Output on 12v mode: 10.5~12.4vdc
Battery Output on 24v mode: 21.0~24.7vdc
Tamper: Front and Rear
Panel Indicators: Mains and Fault
Charge Current: 0.7A max
Charger Fuse: 0.5a PTC
Typical Battery Capacity: 2 x 12v / 7Ah max (batteries not included)

Information om

Kategori : Batterier og strømforsyninger, Produkter, Strømforsyninger, Strømforsyninger & print

EAN-kode : 840049310919

Specifikationer

Generel information

ADI varenummer

UT-PSU12-24V4-2A-1

Mærke

UltraTech by ADI

Producentens varenummer

UT-PSU12/24V4/2A-1

Produkttype

PSU

Tekniske oplysninger

Udgangsspænding

12/24V

Certificeringer

CE-mærkning

Compliant

Garanti

Begrænset garanti

3 år
