Hanwha QNV-C8013R Q Series 5MP IR Outdoor Vandal Dome AI Camera, 3mm Fixed Lens

Brand: Hanwha Vision
ADI #:QNV-C8013R Model #: QNV-C8013R  Name: Hanwha QNV-C8013R Q Series 5MP IR Outdoor Vandal Dome AI Camera, 3mm Fixed Lens
  • Wisenet Q mini network outdoor vandal dome camera
  • Triple codec H.265/H.264/MJPEG with Wisestream III (Based on AI engine)
  • Classified object type-Person/Vehicle (vehicle type - car/bus/truck/motorcycle/bicycle)

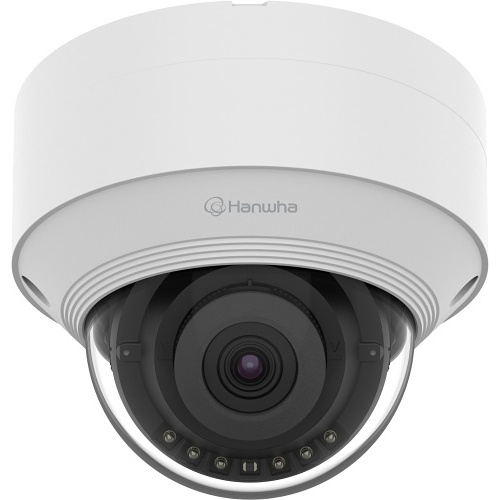

Image of QNV-C8013R

Produktoversigt

General Information

Introducing the new Q Series AI 5MP Fixed cameras, featuring advanced AI analytics and improved image optimization. With 5MP resolution for exceptional clarity and a fixed focus lens for effortless setup, these cameras offer superior performance and user-friendly installation.

Vigtigste funktioner
  • Wisenet Q mini network outdoor vandal dome camera
  • Triple codec H.265/H.264/MJPEG with Wisestream III (Based on AI engine)
  • Classified object type-Person/Vehicle (vehicle type - car/bus/truck/motorcycle/bicycle)
  • Virtual area (Loitering/Intrusion/Enter/Exit/(Dis)Appear)
  • Defocus detection
  • USB for easy installation, open platform
  • IVA Events based on AI engine: Virtual line (Crossing/Direction)
  • USB for easy installation, open platform
  • IP66, IK10, PoE
Information om
Kategori : Dome-kameraer, IP-kameraer, Produkter, Videoovervågning

Specifikationer

Generel information

ADI varenummer
QNV-C8013R
Mærke
Hanwha Vision
Producentens varenummer
QNV-C8013R
Produktmodel
QNV-C8013R
Produktserie
Q

Tekniske oplysninger

Bredt dynamisk område
Yes
Effektiv kameraopløsning
5MP
Infrarød belysning
Yes
Linsetype
Fixed
Maksimal billedhastighed
30 fps
Maksimal blænde
f/1,6
Syns område
Diagonal, Horizontal, Vertical
Videoformater
H.264, H.265, MJPEG

Belysning

Korteste lukkertid
1/25000 Second
Længste lukkertid
1/5 Second
Minimum belysning
0,05 lux|0,005 lux

Certificeringer

CE-mærkning
Compliant
IP-klassificering (Kapslingsklassificering)
IP66

Display og grafik

Maksimal videoopløsning
2592 x 1944

Fysiske egenskaber

Farve
Hvid

Garanti

Begrænset garanti
5-Year

Grænseflader/udvidelsesstik

Netværk (RJ-45)
Yes

Kamera

Billedsensor-type
CMOS

Linse

Fokus afstand
3mm
Objektiv inkluderet
Yes

Miljøforhold

Maksimum operativ temperatur
55°C
Minimum operativ temperature
-30°C

Produktinformation

Diameter
120 mm

Diverse

IK-klassificering (Slagfasthedsklassificering)
IK10
Miljøcertificering
CE, FCC, UL
Miljøvenlig
Yes
