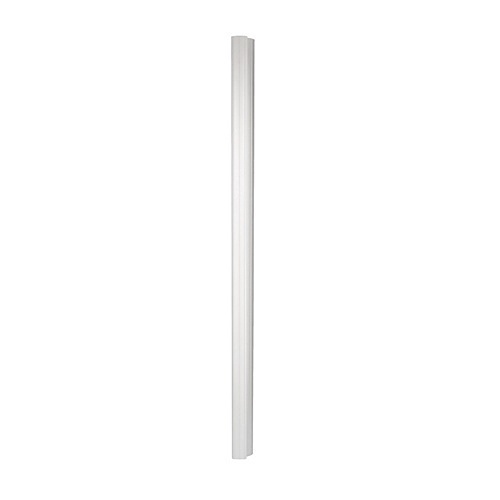

CDVI BO600W Arkitektonisk BO-serie 2500 mm indbygget magnetisk trækhåndtag, plads til 2x 300 kg magnet

Brand: CDVI
ADI #:BO600W Model #: F0519000165  Name: CDVI BO600W Architectural BO Series 2500mm Recessed Magnetic Pull Handle, Space for 2x 300kg Magnet
  • Architectural pull handle with 2x300kg monitored magnets
  • Fit to new doors or retrofit to existing doors
  • Specially designed for sites where the doorframe is not flush with the wall

Fysiske egenskaber

Applikations/brug
Access Control System, College, Commercial, Door, Glass Door, Hospital, Metal Door, Public Building, School, Wooden Door
Bredde
99,3 mm
Dybde
61,5 mm
Farve
Sølv
Formfaktor
Surface Mount
Højde
2500 mm
Materiale
Satin Anodised Aluminium

Garanti

Begrænset garanti
10-Year

Produktinformation

Efterbehandling
Aluminum
Holdestyrke
600kg
Monteringstype
Surface Mount

Strømbeskrivelse

Input Volt
12V DC, 24V DC
Nuværende Input
240mA, 550mA

Diverse

Funktioner
Fail Safe, Overvåget
Indendørs/udendørs
Indoor, Outdoor
Kompatibilitet
Electro-Magnetic Locks
Miljøvenlig
Yes
Yderligere oplysninger
Standard, options RAL colour|-40°C to 70°C Temperature|12/24/48V DC Operating voltage|480mA at 12V DC/240 mA at 24V DC Current/240 mA at 48V DC|2 x 300 kg Holding Force|10 to 60V DC Free voltage|Fail safe Lock mode|NO/NC Contacts|Surface Mount
