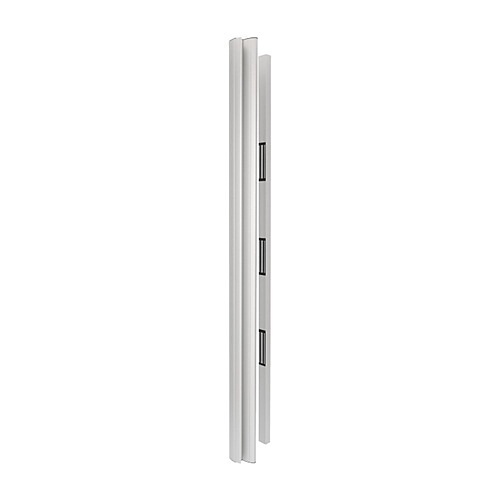

CDVI BO1200RN Arkitektonisk BO-serie 2500 mm magnetisk trækhåndtag, 3x400 kg overvågede magneter

Brand: CDVI
ADI #:BO1200RN Model #: BO1200RN  Name: CDVI BO1200RN Architectural BO Series 2500mm Magnetic Pull Handle, 3x400kg Monitored Magnets
  • Architectural pull handle with 3x400kg monitored magnets
  • Fit to new doors or retrofit to existing doors
  • Ideal for high traffic sites that need high holding force and an aesthetic finish

Fysiske egenskaber

Applikations/brug
Access Control System, College, Commercial, Door, Glass Door, Hospital, Metal Door, Public Building, School, Wooden Door
Bredde
126 mm
Dybde
68 mm
Farve
Sølv
Formfaktor
Surface Mount
Højde
2500 mm
Materiale
Satin Anodised Aluminium

Garanti

Begrænset garanti
10-Year

Produktinformation

Efterbehandling
Satin Anodized Aluminium
Holdestyrke
1200kg
Monteringstype
Surface Mount

Strømbeskrivelse

Input Volt
12V DC, 24V DC
Nuværende Input
240mA, 480mA

Diverse

Funktioner
Electromagnetic Handle/Architectural Handle, Retrofit or New Build, Surface Mount Architectural Handle
Indendørs/udendørs
Indoor, Outdoor
Kompatibilitet
Electro-Magnetic Locks
Miljøvenlig
Yes
Yderligere oplysninger
Standard, options RAL colour|-20°C to 70°C Temperature|12V to 24V DC Operating voltage|480mA at 12V DC/240 mA at 24V DC Current|3 x 400 kg Holding Force
