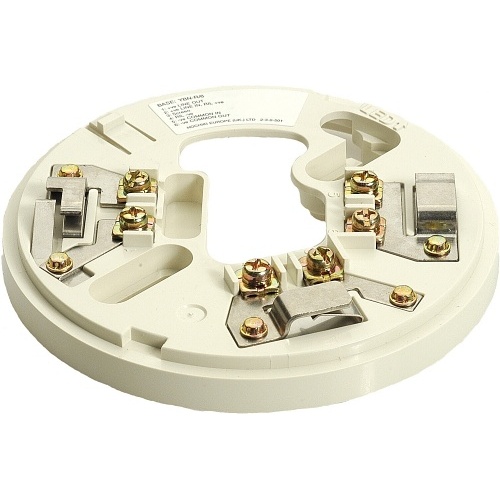

Hochiki YBN-R/6 Conventional Detector Mounting Base for CDX Series, Ivory
Brand: HOCHIKI
ADI #:YBN-R/6
Model #: YBN-R/6
Name: Hochiki YBN-R/6 Conventional Detector Mounting Base for CDX Series, Ivory
- Low Profile, only 8 mm
- Accepts 2.5 mm2 cables
- Integral remote indicator output
Product Overview
General Information
Model YBN-R/6 is a Conventional Detector Mounting Base associated with the CDX Range of Detectors and is fully compatible with the majority of existing conventional fire alarm control panels. It is supplied with square cable clamps for secure and reliable cable termination but the base does not provide line continuity during detector removal, therefore if Call Points are being used then these should be wired onto the zone first. The integrated third terminal provides remote indicator output.
Main Features
- Low Profile, only 8 mm
- Accepts 2.5 mm2 cables
- Integral remote indicator output
- Rugged design and electronics free
- Quick connections via square cable clamps
- Bayonet slot, low insertion force for detectors
Information
Category : Detector Bases, Fire, Fire Detection Devices, Produkter
Specifications
Generel information
ADI Part Number
YBN-R/6
Mærke
Hochiki
Producent
Hochiki America Corporation
Producentens varenummer
YBN-R/6
Produktmodel
YBN-R/6
Produktnavn
YBN-R/6 Conventional Detector Mounting Base
Produkttype
Smoke Detector Base
Weight (Approximate) (g)
51
Tekniske oplysninger
Understøttet enhed
Smoke Detector
Fysiske egenskaber
Height (mm)
8
Højde
8 mm
Produkt Materiel
ABS
Vægt (ca.)
51 g
Strømbeskrivelse
Input Volt
30 V DC
